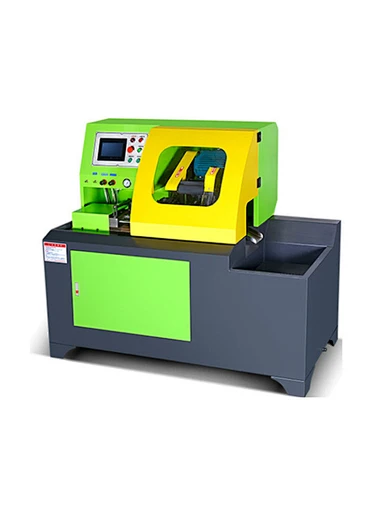

Automatic cutting machine (pneumatic servo feeding type)
Features:
1. Precision cutting stainless steel, aluminum, copper and other materials
2. Precision cutting round pipes, square pipes, shaped pipes. Simultaneous cutting of 10 pieces φ23mm, 6 pieces φ10mm.
3. Can cut steel pipe φ20mm stainless steel thickness up to 0.8mm, general carbon steel pipe thickness up to 1.5mm; Cut surface cleanliness V8, no burrs, no black marks.
4. No secondary grinding processing.
5. Power saving, the power is only half of the same functional model.
6. Flexible operation and convenient adjustment.
7. Touch screen system operation, all functions are integrated on the panel, at a glance, easy to operate.
8. PLC logic control, simple line, easy maintenance.
9. Precision structure: precision guide rail, high-density spindle grinding head
10. CNC servo feeding, processing accuracy up to 0.03mm.
Specification
Model | GTW-50 |
Cutting diameter range | 1-60mm |
Cutting thickness range | 0.15-1.5mm |
Main motor power | 750W |
Main motor Voltage | 380V |
Main motor speed | 150-430 RPM |
Cooling water pump | 120W/380V |
Lift and Volume | 4 meter and 25L |
Knife | OD160mm/ID25.4, Thickness0.5-1.5mm |
Feeding length | 3-400mm, multi feeding |
Size | 1120*820*770mm |
Net weight | 400 Kgs |
