Carbon steel continuous pickling line
continuous-pickling-line
The continuous pickling line is a modernized production line for pickling process that the steel strip is driven continuously through the acid tank and rinsing tank. The continuous pickling line is characteristic with high efficiency and high throughput, and low energy consumption. The annual capacity of the line is 600,000-1,200,000 tons.
Quantity
GLIMPSE continuous pickling line
The continuous pickling line is a modernized production line for pickling process that the steel strip is driven continuously through the acid tank and rinsing tank. The continuous pickling line is characteristic with high efficiency and high throughput, and low energy consumption. The annual capacity of the line is 600,000-1,200,000 tons.
Glimpse Technology is able to customize the continuous pickling line to accommodate customer particular pickling requirement of quality and capacity.
Parameters of GLIMPSE Standard continuous pickling line
Type: continuous type
Acid: HCL
Strip thickness: 1.2-4.5mm
Strip width: 500-1530mm
Coil weight: Max 30T
Line speed: Max 300m/min
Annual throughput: 800,000 tons per year
Unit composition of GLIMPSE Standard continuous pickling line
payoff roll→9-roll straightener→shear→welder→entry looper→pre-rinsing tank→rinsing tank→hot air drier→exit looper→deflector→bridle roll→shear→oiler→tension coiler

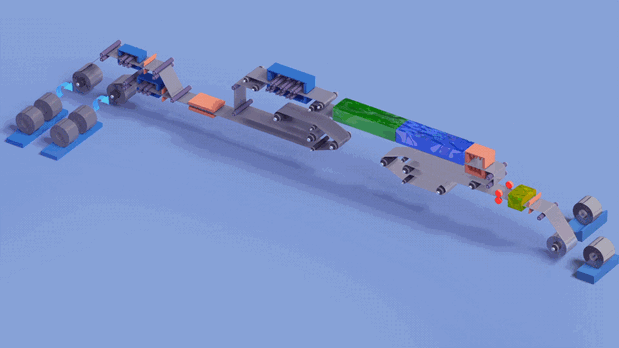

Model of GLIMPSE Standard continuous pickling line
Keywords: continuous pickling line, CPL
