hot annealing and pickling line for stainless steel
hot-annealing-pickling
EXW,FOB,CIF
1 set
10000set / Year
China
30Day
The Hot Annealing and Pickling Line for stainless steel takes in hot rolled black coils as raw incoming material and delivers 2D/2E finishing stainless steel coils through continuously annealing, scale breaking, shot blast, pickling, cleaning processes. The Hot Annealing and Pickling Line uses level 2 automation control of speed, tension, current, and equipped with full digital displays of line processing. The production line motor uses AC variable frequency conversion control performance stable and reliable, high production efficiency, energy saving, and high investment in investment. pickling line
Quantity
Hot Annealing and Pickling Line
(HAPL)
Brief introduction

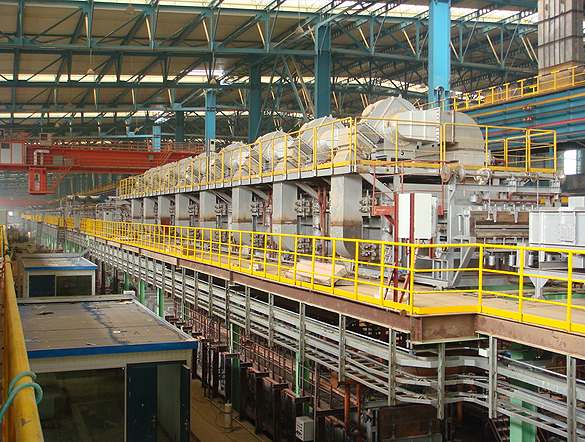

The Hot Annealing and Pickling Line takes in hot rolled black coils as raw incoming material and delivers 2D/2E finishing stainless steel coils through continuously annealing, scale breaking, shot blast, pickling, cleaning processes. The Hot Annealing and Pickling Line uses level 2 automation control of speed, tension, current, and equipped with full digital displays of line processing. The production line motor uses AC variable frequency conversion control performance stable and reliable, high production efficiency, energy saving, and high investment in investment.
The hot annealing and pickling line is composed of payoff roll, welding machine, annealing, phosphorus breaking machine, shot blaster, pickling, air knife, dryer, recoiler, and other auxiliary equipment.
Keywords: Annealing and pickling line, Hot rolled coil, continuous annealing line, continuous pickling line,Hot Annealing and Pickling Line
(HAPL)
Brief introduction
The Hot Annealing and Pickling Line takes in hot rolled black coils as raw incoming material and delivers 2D/2E finishing stainless steel coils through continuously annealing, scale breaking, shot blast, pickling, cleaning processes. The Hot Annealing and Pickling Line uses level 2 automation control of speed, tension, current, and equipped with full digital displays of line processing. The production line motor uses AC variable frequency conversion control performance stable and reliable, high production efficiency, energy saving, and high investment in investment.
- The composition of the Hot annealing and pickling line
The hot annealing and pickling line is composed of payoff roll, welding machine, annealing, phosphorus breaking machine, shot blaster, pickling, air knife, dryer, recoiler, and other auxiliary equipment.
- The main parameters of the classic hot annealing and pickling line:
- Material: AISI200,300,400
- Thickness: 1.5-5.0mm
- Width: 800 ~ 1300mm
- Coil diameter: 1000 ~ 2000mm
- Process speed: 120m/min
- Length of line: 400M
- Annual output: 600,000 tons
Keywords: Annealing and pickling line, Hot rolled coil, continuous annealing line, continuous pickling line,Hot Annealing and Pickling Line
