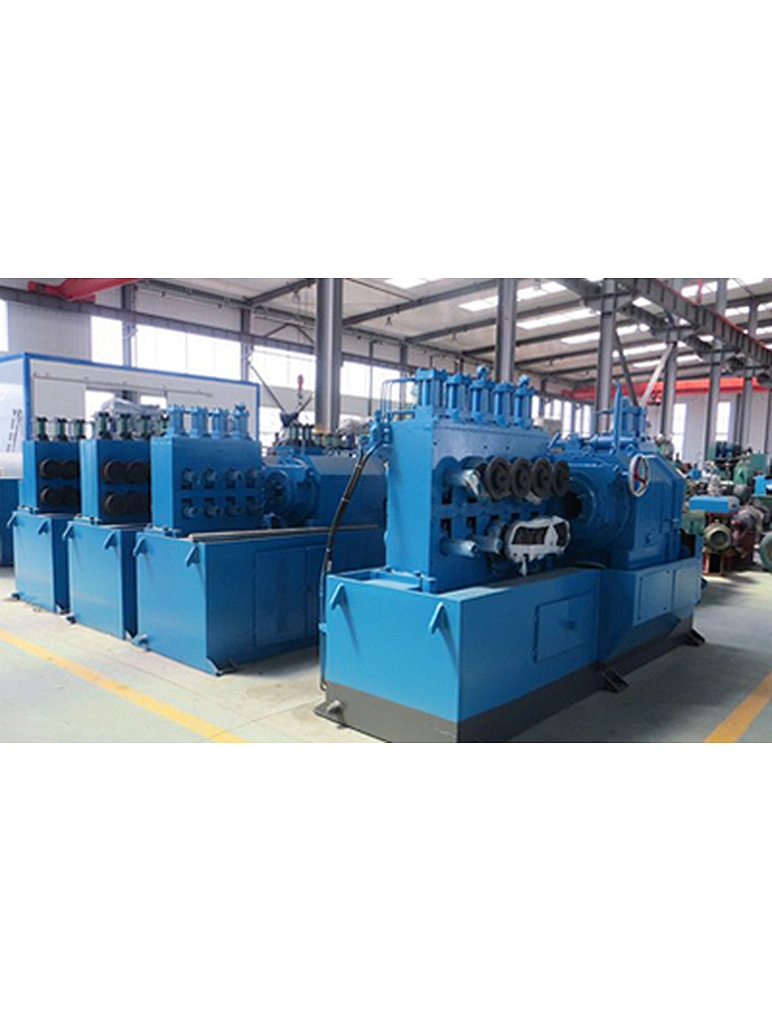

Peeling machine

Peeling machine is a centerless lathe unit features: strong practicality, high cost performance, stable processing, fast speed, high efficiency, good surface quality.

Semi-automatic press and twist control of the entire line of equipment. Tool adjustment for unified automatic centering. Feeding and discharging device design automatic aligning, material diameter changes can be automatically adjusted. The leading device is a roller type clamping mechanism to effectively avoid material scratches. The middle and rear guide clamping device is designed to combine elastic clamping and rigid clamping structure to meet the different requirements of different users on machining materials, precision and convenience. Hydraulic pressing device adopts special hydraulic circuit design, long pressure holding time, power saving, good self-locking ability, accurate position, reliable pressing, and easy to adjust, easy to operate. Long cutting edge distance, smooth processing, high speed. The feed wheel ADAPTS to a large range, does not have to change the wheel frequently, and has high work efficiency. Due to the addition of oil and gas lubrication device, the bearing life is extended by 3-6 times, and the linear speed of the material can reach 8m/min. Transfer box cardan shaft drive more reliable. The extraction adopts the clamping car structure to avoid the crushing injury of the material discharge. The unit is 15.5 meters long and covers an area of 15.5 meters X6 meters. The equipment is designed and manufactured in strict accordance with relevant standards and technical agreements. The shelf life is 12 months.

Main technical features:

1, Material: titanium alloy, stainless steel (304, 306, 630), bearing steel, spring steel, alloy tool steel, carbon tool steel, high-speed tool steel, high-quality carbon steel, alloy structural steel, non-tempered steel, easy to cut steel, valve steel, gear steel, die steel and various non-ferrous metals, pipes, etc.

2, equipment rack load: ≤5000kg

3, blank size specifications:

Diameter range: Φ16.5-Φ105

Straightness: 2‰

Length range: 2.2M-6M (can be extended as needed)

4. Finished products

Diameter range: Φ16-Φ100

Dimensional accuracy: ≤h9 ~ h10

Surface roughness Ra: ≤3.2 ~ 6.3

Ellipticity: half of the tolerance

5, equipment technical parameters:

Cutting depth: 0.25-2.5mm

Cutter speed (stepless transmission) : 600r/min

Feed speed (stepless) : 1-8m/min

Main motor power: 45Kw6 poles

Feed and draw motor power: 4kW 1 set

6. Energy medium parameters

Voltage: 3×380V±10%

Frequency: 50Hz±2%

Installed capacity: 56KW

Pneumatic flow rate:.5m3/min

Coolant flow rate: 200L/min
