20 high cold reversing mill for rolling stainless steel
20-hi-crm-ss1
FOB CIF
1 piece
10piece / Year
CHINA
180Day
This 20 high cold reversing mill is developed for cold rolling high strength materils such as stainless steel and electrical steel grages. Glimpse Technology provides high customized engineering, manufacturing and installation & commissioning services for complete of cold reversing mills.
Quantity
20 highcold reversing mill for rolling stainless steel
Brief introduction
The 20 high cold reversing mill is suitable for cold rolling high-strength steel materials such as stainless steel, silicon steel and carbon steel, and is the best choice for precision stainless steel strip rolling. The 20 high cold reversing mill has the advantages of high rolling thickness accuracy, good flatness, and excellent strip shape. The 20 high cold reversing mill has a high level of automation, saving labor costs and high efficiency. For rolling stainless steel materials, the reduction rate is above 90%, and the rolling speed is 700 m/min; the maximum reduction rate for rolling carbon steel materials is above 95%, and the rolling speed reaches 800 m/min. The rolling output thickness is as thin as 0.03 mm.
Main parameters
Maximum rolling speed: 800 meters/minute
Minimum rolling thickness: 0.03 mm
Maximum rolling width: 1675 mm

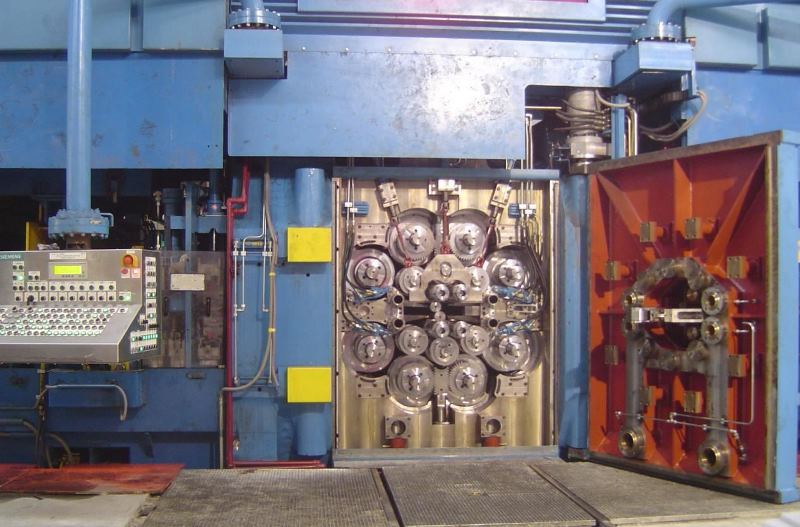

Roll cluster of 20 high cold reversing mill
Model of 20 high cold reversing mill

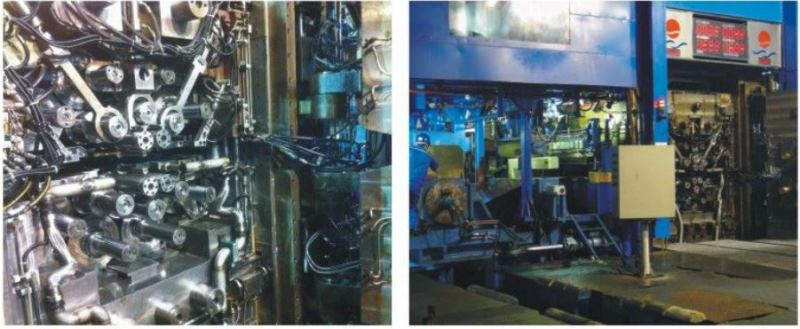

Typical models of20 high cold reversing mill
1. 1450mm 20 high cold reversing mill (AC inverter motor) Main parameters:
Material grade: stainless steel
Strip thickness: 5.0-0.15mm
Strip width: 800-1,300 mm
Rolling speed: 800 m/min
Diameter of work roll: 80 mm
Diameter of back up roll bearing: 406.4 mm
Rolling force: 10000 kn
Main motor power: 5000 kw
Coiling motor power: 8000 kW (two 4000kW)
2. 1450mm 20 high cold reversing mill (DC motor) Main parameters:
Material grades: stainless steel
Strip thickness: 0.0-0.10mm
Strip width: 800-1,300 mm
Rolling speed: 600 m/min
Diameter of work roll: 63 mm
Diameter of back up roll bearing: 300 mm
Rolling force: 8000 kn
Main motor power: 3000 kW (two 1500kW)
Coiling motor power: 3000 kW (two 1500kW)
Division Line ---------------
Glimpse Technology provides global customers with engineering consulting, planning, design, installation, commissioning, training and other engineering general contracting and mechanical professional subcontracting services of 20 high cold reversing mill. Welcome to call for consultation and cooperation!
Keywords:20 high cold reversing mill
Brief introduction
The 20 high cold reversing mill is suitable for cold rolling high-strength steel materials such as stainless steel, silicon steel and carbon steel, and is the best choice for precision stainless steel strip rolling. The 20 high cold reversing mill has the advantages of high rolling thickness accuracy, good flatness, and excellent strip shape. The 20 high cold reversing mill has a high level of automation, saving labor costs and high efficiency. For rolling stainless steel materials, the reduction rate is above 90%, and the rolling speed is 700 m/min; the maximum reduction rate for rolling carbon steel materials is above 95%, and the rolling speed reaches 800 m/min. The rolling output thickness is as thin as 0.03 mm.
Main parameters
Maximum rolling speed: 800 meters/minute
Minimum rolling thickness: 0.03 mm
Maximum rolling width: 1675 mm
Roll cluster of 20 high cold reversing mill
Model of 20 high cold reversing mill
| Model Selection table | |||||
| Rolling material | Stainless steel, silicon steel, high -carbon steel, You steel, copper, etc. | ||||
| Chinese model | Corresponding foreign models | Working roller mm | Back up Roller MM | Width/mm | Minimum thickness mm |
| 350-550 | ZR-33 | 28 | 160 | Min220/Max550 | 0.03 |
| 550-750 | ZR-23 | 40 | 225 | Min450/Max750 | 0.05 |
| 850-1050 | ZR-22 | 63.5 | 300 | Min480/Max1050 | 0.08 |
| 1300 | ZR-22 | 63.5 | 300 | Min660/Max1320 | 0.08 |
| 1600 | ZR-21 | 80 | 406.4 | Min840/Max1675 | 0.15 |
Typical models of20 high cold reversing mill
1. 1450mm 20 high cold reversing mill (AC inverter motor) Main parameters:
Material grade: stainless steel
Strip thickness: 5.0-0.15mm
Strip width: 800-1,300 mm
Rolling speed: 800 m/min
Diameter of work roll: 80 mm
Diameter of back up roll bearing: 406.4 mm
Rolling force: 10000 kn
Main motor power: 5000 kw
Coiling motor power: 8000 kW (two 4000kW)
2. 1450mm 20 high cold reversing mill (DC motor) Main parameters:
Material grades: stainless steel
Strip thickness: 0.0-0.10mm
Strip width: 800-1,300 mm
Rolling speed: 600 m/min
Diameter of work roll: 63 mm
Diameter of back up roll bearing: 300 mm
Rolling force: 8000 kn
Main motor power: 3000 kW (two 1500kW)
Coiling motor power: 3000 kW (two 1500kW)
Division Line ---------------
Glimpse Technology provides global customers with engineering consulting, planning, design, installation, commissioning, training and other engineering general contracting and mechanical professional subcontracting services of 20 high cold reversing mill. Welcome to call for consultation and cooperation!
Overview of 20 high cold rolling mill
