20 high reversible cold rolling mill unit
20-hi-crm
EXW,FOB,CIF
1 set
10000set / Year
China
30Day
The 20-high reversible cold rolling mill is suitable for cold rolling and finishing of high-strength strips such as stainless steel, silicon steel and carbon steel, and is the best choice for precision stainless steel strip rolling. The 20-hi RCRM has the advantages of high rolling thickness accuracy, good flatness, and excellent strip shape. The cold rolling mill has a high level of automation, saving labor costs and high efficiency. For rolling stainless steel materials, the reduction rate is above 90%, and the rolling speed is 700 m/min; the maximum reduction rate for rolling carbon steel materials is above 95%, and the rolling speed reaches 800 m/min. The rolling output thickness is as thin as 0.03 mm.
Quantity
20-high reversible cold rolling mill
(20-hi RCRM)
Keywords: twenty high rolling mill, 20 high rolling mill, stainless steel rolling mill, 20 hi rolling mill, 20 high CRM
Brief introduction
The 20-high reversible cold rolling mill is suitable for cold rolling and finishing of high-strength strips such as stainless steel, silicon steel and carbon steel, and is the best choice for precision stainless steel strip rolling. The 20-high reversible cold rolling mill has the advantages of high rolling thickness accuracy, good flatness, and excellent strip shape. The cold rolling mill has a high level of automation, saving labor costs and high efficiency. For rolling stainless steel materials, the reduction rate is above 90%, and the rolling speed is 700 m/min; the maximum reduction rate for rolling carbon steel materials is above 95%, and the rolling speed reaches 800 m/min. The rolling output thickness is as thin as 0.03 mm.
Main parameters
- Maximum rolling speed: 800 meters/minute
- Minimum rolling thickness: 0.03 mm
- Maximum rolling width: 1675 mm

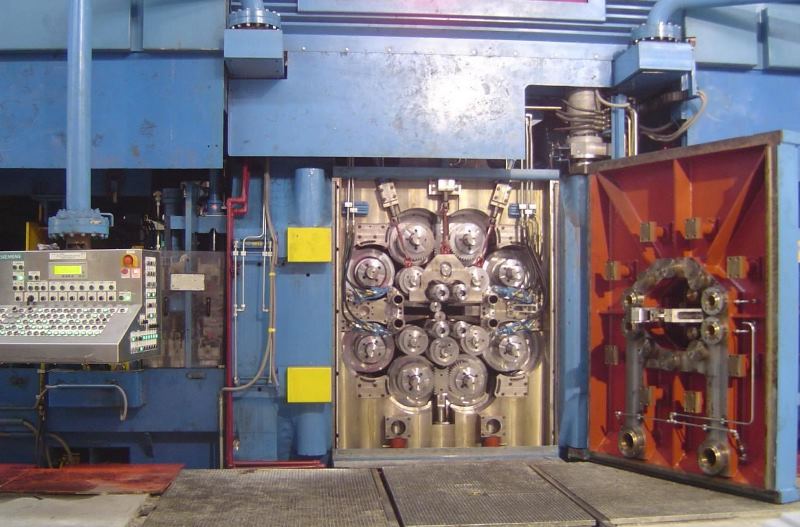

Roll cluster of 20 high reversible cold rolling mill
Model of 20 high reversible cold rolling mill unit
| Model Selection table | |||||
| Rolling material | Stainless steel, silicon steel, high -carbon steel, You steel, copper, etc. | ||||
| Chinese model | Corresponding foreign models | Working roller mm | Back up Roller MM | Width/mm | Minimum thickness mm |
| 350-550 | ZR-33 | 28 | 160 | Min220/Max550 | 0.03 |
| 550-750 | ZR-23 | 40 | 225 | Min450/Max750 | 0.05 |
| 850-1050 | ZR-22 | 63.5 | 300 | Min480/Max1050 | 0.08 |
| 1300 | ZR-22 | 63.5 | 300 | Min660/Max1320 | 0.08 |
| 1600 | ZR-21 | 80 | 406.4 | Min840/Max1675 | 0.15 |
Typical models
- 1450mm 20 high reversible Rolling Production Line (AC inverter motor) Main parameters:
- Material grade: stainless steel
- Strip thickness: 5.0-0.15mm
- Strip width: 800-1,300 mm
- Rolling speed: 800 m/min
- Diameter of work roll: 80 mm
- Diameter of back up roll bearing: 406.4 mm
- Rolling force: 10000 kn
- Main motor power: 5000 kw
- Coiling motor power: 8000 kW (two 4000kW)
- 1450mm 20 high reversible Rolling Production Line (DC motor) Main parameters:
- Material grades: stainless steel
- Strip thickness: 4.0-0.10mm
- Strip width: 800-1,300 mm
- Rolling speed: 600 m/min
- Diameter of work roll: 63 mm
- Diameter of back up roll bearing: 300 mm
- Rolling force: 8000 kn
- Main motor power: 3000 kW (two 1500kW)
- Coiling motor power: 3000 kW (two 1500kW)
Overview of 20 high cold rolling mill
Glimpse Technology provides global customers with engineering consulting, planning, design, installation, commissioning, training and other engineering general contracting and mechanical professional subcontracting services of 20 high reversible cold rolling mill facility. Welcome to call for consultation and cooperation!
