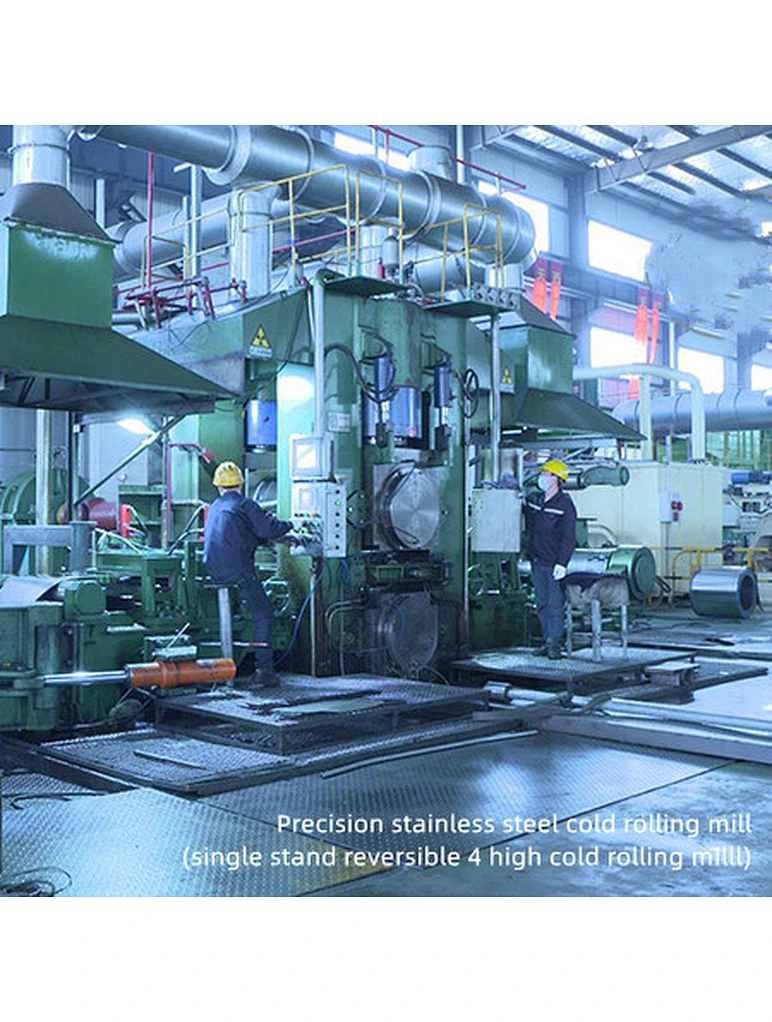

Single stand reversible four high precision stainless steel cold rolling mill
Single-stand reversible precision stainless steel four-high cold rolling mill is a cold rolling mill specially designed for the production of precision stainless steel strips by using advanced four-high cold rolling technology. The unit adopts hydraulic pressure and has automatic thickness control system, which has the characteristics of small thickness deviation and good plate shape.
Equipment use and characteristics of four high cold rolling mill
1) Suitable for general carbon steel, stainless steel, special steel strip rolling.
2) Two transmission methods: work roll and support roll.
3) Electric pressing and hydraulic pressing are two pressing methods.
3) It can be equipped with work roll bending equipment, which can quickly adjust the crown of the roll, change the contact pressure distribution between the rolls, and reach the intention of controlling the shape of the plate.
4) The whole machine has simple structure, convenient maintenance and operation, and less investment.
5) Four-high cold rolling mill equipment control precision is high, especially suitable for high precision cold rolling strip production.
The main technical parameters of 750 single stand reversible four-high precision stainless steel cold rolling mill:
Material: Stainless Steel 304,201 etc.
Input spec: 2.0- 3.0×650mm,
Output spec: 0.18～1.0×650mm
Sleeve diameter: Ø500
Coil diameter: max. Ø1700mm
Coil weight: max.10000kg
Rolling force: max. 1000T
Rolling speed: max. 240m∕min
Winding tension: max. 130kN
The process flow of 750 single stand reversible four-high precision stainless steel cold rolling set:
Hydraulic expansion and shrinkage coiler (with hydraulic feeding trolley) → left coiler (solid drum type) → feeding process platform (steering speed measuring roller, welding frame, thickness gauge, hydraulic cloth clip, roller guide) → main rolling mill (cloth clip on each inlet and outlet side) → Discharge process platform (roller guide, hydraulic cloth clip, thickness gauge, welding frame, steering speed measuring roller) → right winding machine (solid drum type)
Equipment list of Type 750 single-stand reversible four-high precision Stainless Steel cold Rolling mill:
Load car 1 set
Payoff roll 1 set
Feeding platform 1 set
4hi mill 1 set
Roll changing device (support roll) 1 set
Discharging platform 1 set
Tension Roll 2 sets
Electric control system 1 set
Thin oil station 1 set
General hydraulic station 1 set
AGC hydraulic station 1 set
Process lubrication station 1 set
Thickness gauge 2 sets
Scope of GLIMPSE TECHNOLOGY
1) Design of the complete set of equipment for the 750 Type reversible 4 Hi cold rolling mill unit including electric equipment, automatic instruments, mechanical equipment, layout, tools and dies (Rolls, shear, etc..)
2) Manufacture or supply of mechanical equipment, electric equipment, operation platform, hydraulic system, control system, instruments, lubrication system, etc.
3) Supervision services of installation of 750 Type reversible 4 Hi cold rolling mill unit;
4) Relative technical documents of 750 Type reversible 4 Hi cold rolling mill unit.
