6 Hi HC (HCM) cold rolling mill unit
HC-MILL
The 6 Hi HC cold rolling mill is a cold rolling machine that rolls steel coils to a specified thickness at room temperature.
Quantity
6 Hi HC (HCM) cold rolling mill unit
The 6 Hi HC cold rolling mill is a cold rolling machine that rolls steel coils to a specified thickness at room temperature.
With years of experience, Glimpse Technology can provide customers with a complete set of cold rolling technology solutions, cold rolling equipment and engineering services
The main features of 6 Hi HC cold rolling mill units

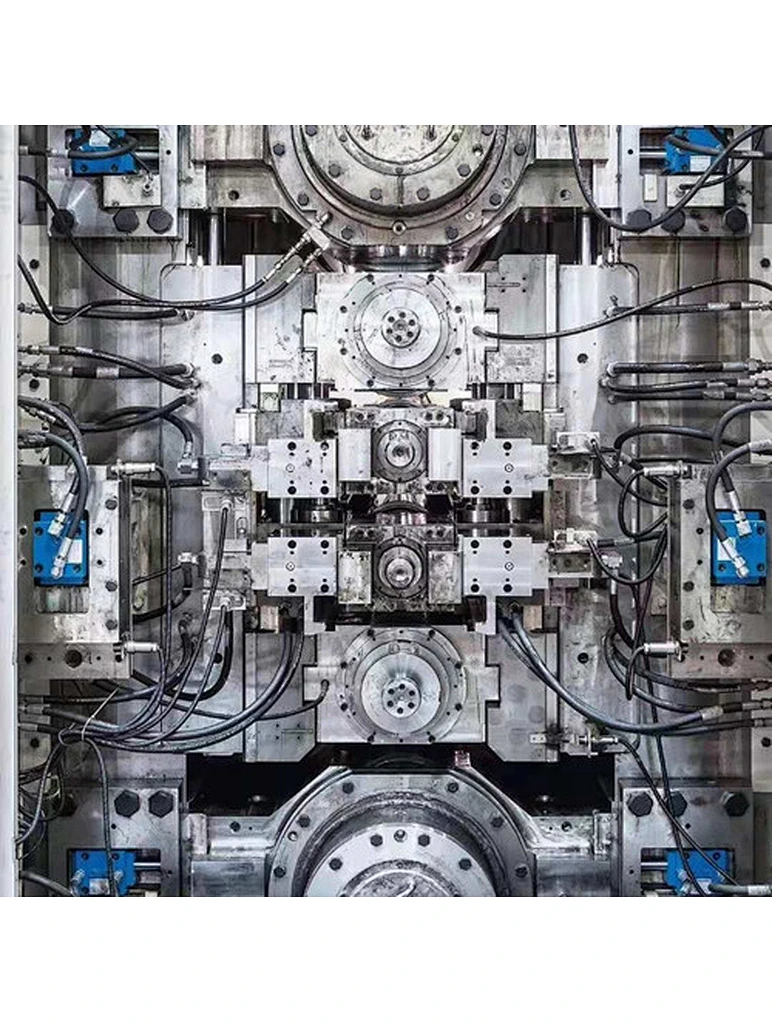

The 6 Hi HC cold rolling mill is a three -layer roll system (that is, two backup rolls, two intermediate rolls, and two work rolls). The system is driven by work rolls.
The 6 Hi HC cold rolling mill unit is the most cold rolling mill for common carbon steel. 6 Hi HC cold rolling mill can roll thinner gauge than 4 Hi cold rolling mill does for having smaller work rolls. The 6 Hi HC cold rolling mill unit is also often used for rolling of the 200 Series and 300 Series stainless steels.
The roller system of 6 Hi HC cold rolling mill is stable, the speed can reach 1500m/min, and the rolling capacity is large.
There are many adjusting methods of 6 Hi HC cold rolling mill. The 6 Hi HC cold rolling mill has AGC pressure control, press down adjusting, work roll's positive and negative bending, intermediate roll bending, intermediate roll twitching and other adjustment methods.
The composition of 6 Hi HC cold rolling mill unit
Payoff roll (load car) → head straightener → front coiler → (unload car) →unit front devices → 6 Hi mill → unit rear devices → rear coiler (unload car) → (coil wrapper)
The technical parameter table of the Hi HC cold rolling mill unit
1) 6 Hi HC cold rolling mill unit (1450mm)
Material with steel: ordinary carbon steel, high -quality carbon steel, low alloy structure steel
Input thickness: 4.0-1.2mm
Output thickness: 0.12mm
Output width: 800-1,300 mm
Rolling speed: 1200 m/min
Work roll diameter: 330 mm
Backup roll diameter: 1180 mm
Rolling force: 18000 kn
Coiling motor power: 6000 KW (four units 1500kW)
Roll motor power: 6000 kW (four units 1500kW)
2) 6 Hi HC cold rolling mill unit (1200mm)
Material with steel: ordinary carbon steel, high -quality carbon steel, low alloy structure steel
Come with steel thickness: 4.0-1.2mm
The thickness of the finished product with steel: 0.12mmin
Bring steel width: 750-1,080 mm
Rolling speed: 1200 m/min
Work roll diameter: 300 mm
Backup roll diameter: 1050 mm
Rolling force: 14000 kn
Coiling motor power: 5000 KW (four units 1250kW)
Roll motor power: 5000 kW (four units 1250kW)
Keywords: cold rolling mill, cold rolling machine, HC mill, HCM mill, 6 Hi cold rolling mill
