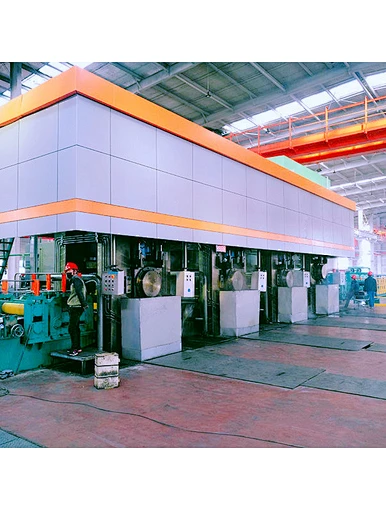

4 stand 4 high carbon steel tandem cold mill

Application of tandem cold mill: the raw material steel strip is rolled to the target thickness after passing four rolling stands continuously. This unit is specially developed for carbon steel strip production rolling mill, with high yield, high efficiency and good quality.

Main parameters:

Incoming condition: hot rolled coil with pickling and edging

Incoming material: plain carbon steel

Incoming roll weight: maximum 15 tons

Thickness of incoming material: 2.5-3.5mm

Incoming material width: 600-780mm

Inner diameter of steel belt: 508mm

Outer diameter of steel belt: 2000mm

Thickness of finished product: 0.5-2.0mm

Rolling force: Maximum 800 tons

Rolling speed: up to 480MPM

Pressing mode: hydraulic pressing

Roll size:

1-3 rack: Φ230X850/ φ720x820 mm

Four racks: Φ230X850/ φ260x850 mm/ φ720x820 mm
