Glimpse 18 High tandem cold mill
18hi-tandem-mill
The18 High tandem cold mill unit consists of five to six stands of 18 High cold rolling mills arranged in series, reducing the thickness of the stainless steel with a single pass.
Quantity
Glimpse 18 High tandem cold mill
High -efficiency and high -quality production of stainless steel strips
The18 High tandem cold mill unit consists of five to six stands of 18 High cold rolling mills arranged in series, reducing the thickness of the stainless steel with a single pass. Relying on the strong reduction ability and high output level of 18 High cold rolling mills, The unit helps stainless steel producers to meet the growing demand for stainless steels. Glimpse technology Tandem cold mills with the principle of 18 High mills have advanced functions which help improve the finished rate, achieve excellent steel quality, meets strict tolerance requirements, while ensuring simple operation and ensuring that the operation is simple and easy to use.

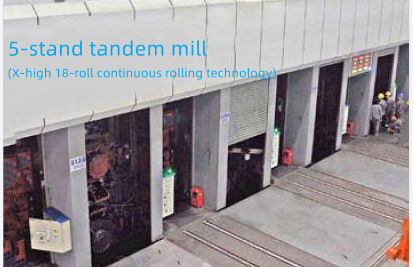

The main parameters of the Glimpse five-stand tandem cold mill:
Material: stainless steel hr No.1 or CR annealing
Width: 800-1300mm
Input thickness: 1.5-6.0mm
Finished product thickness: 0.2-2.0mm
Inner diameter of the coil: 610mm
Coil outer diameter: 900-2000mm
Coil weight: 25,000kg maximum (including steel roll tube)
Line speed: Entry 180m/min Exit 420m/min/min
Rolling speed: 400m/min
Annual output: 600,000 tons/year

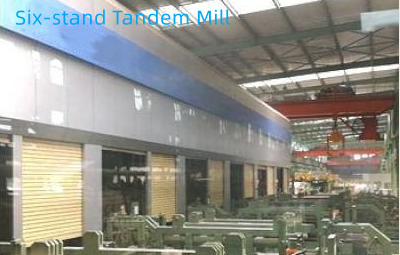

The main parameters of the Glimpse Six-stand tandem cold mill:
Material: stainless steel hr No.1 or CR annealing
Steel width: 800-1300mm
The thickness of the material: 1.5-6.0mm
Finished product thickness: 0.3-3.0mm
Inner diameter of steel roll: 610mm
Steel roll outer diameter: 900-2000mm
Weight of steel rolls: max 28 tons (including steel rolls)
Rolling speed: 400m/min
Annual output: 700,000 tons
Keywords: tandem mill, tandem cold mill, stainless steel tandem mill, 18 High tandem mill
