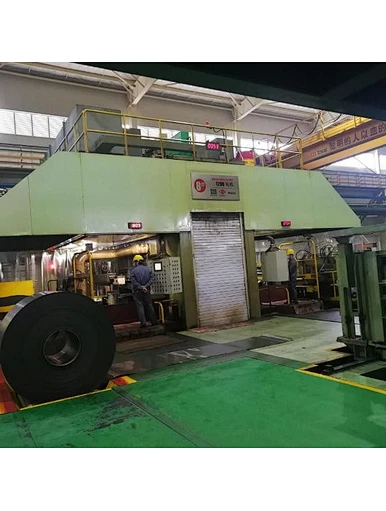

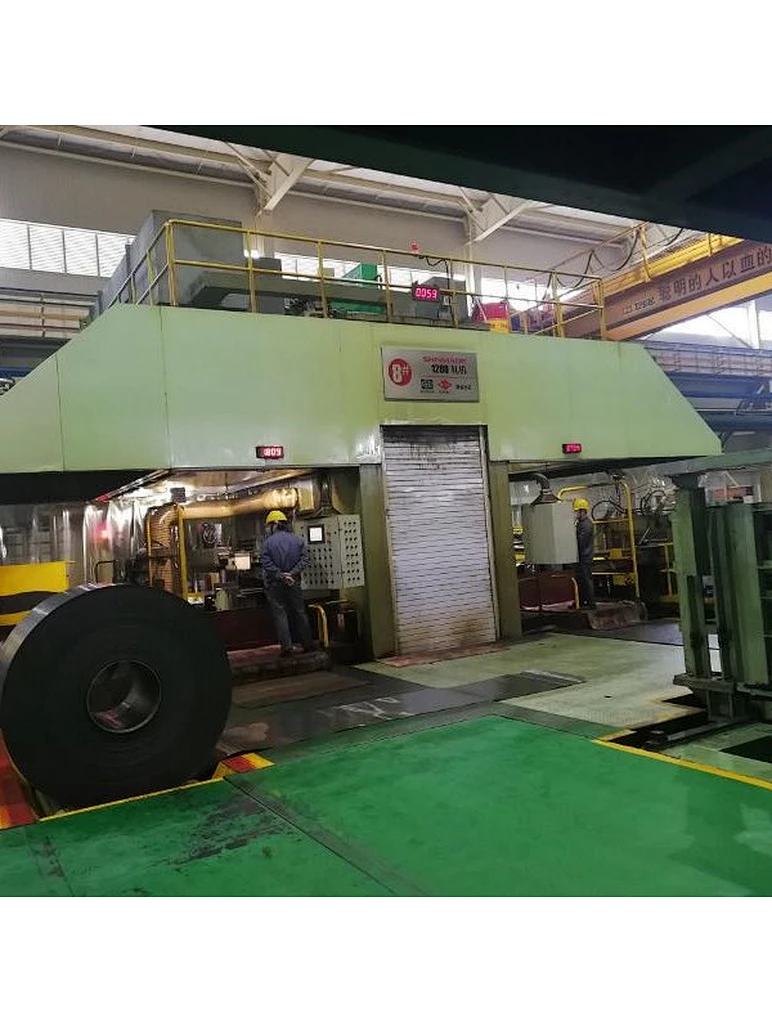

Glimpse 6 high UCM cold rolling mill
UCM
in terms of shape control, the UCM cold rolling mill has intermediate roll shifting, bending of intermediate roll and work roll. shape control ability is better. UCM cold rolling mill is widely used in wide-thin carbon steel strips, and is also often used in rolling of 200 series and 300 series. The 6 high UCM rolling mill is currently the most commonly used cold rolling model for common carbon steel in the industry.
Quantity
Glimpse 6 high UCM cold rolling mill
Glimpse UCM cold rolling mill is on the basic HC basic model of 6 high mill to increase the bending capacity of intermediate roll. Therefore, in terms of shape control, the UCM cold rolling mill has intermediate roll shifting, bending of intermediate roll and work roll. shape control ability is better. UCM cold rolling mill is widely used in wide-thin carbon steel strips, and is also often used in rolling of 200 series and 300 series. The 6 high UCM rolling mill is currently the most commonly used cold rolling model for common carbon steel in the industry.
Features of 6 high UCM cold rolling mill unit
Rolling speed can reach 1500m/min, and the output is large.
More dimension accuracy by multiple shape control and hydraulic AGC control
Composition of 6 high UCM cold rolling mill unit
Payoff roll (load car) → head straightener→ left tension coiler → (unloading car) → front machine device → UCM mill → machine rear device → right tension coiler (unloading car)
Main parameters of 6 high UCM cold rolling mill unit
1) 1450 type 6 high UCM cold rolling mill unit
Material: carbon steel, stainless steel
Input thickness: 1.2-4.0mm
Finished thickness: 0.12-0.6mm
Width: 800-1,300 mm
Rolling speed: 1200 m/min
Work roll diameter: 330 mm
Support diameter: 1180 mm
Rolling force: 18000 kn
Mill motor power: 6000 KW (four units 1500kW)
Coiler motor power: 6000 kW (four units 1500kW)
2) 1200 type 6 high UCM cold rolling mill unit
Material: carbon steel, stainless steel
Input thickness: 1.2-4.0mm
Finished thickness: 0.12-0.6mm
Width: 750-1,080 mm
Rolling speed: 1200 m/min
Work roll diameter: 300 mm
Support diameter: 1050 mm
Rolling force: 14000 kn
Mill motor power: 5000 KW (four units 1250kW)
Coiler motor power: 5000 kW (four units 1250kW)
Keywords: UCM cold rolling mill, 6 high mill, UCM cold mill, UCM mill
