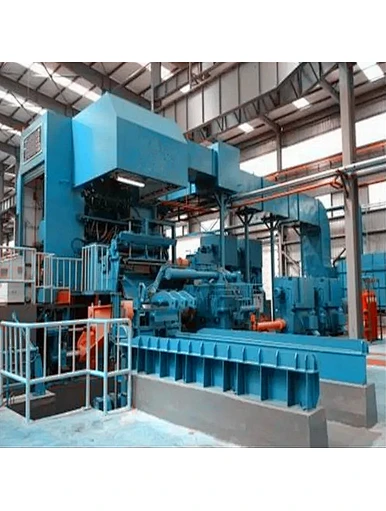

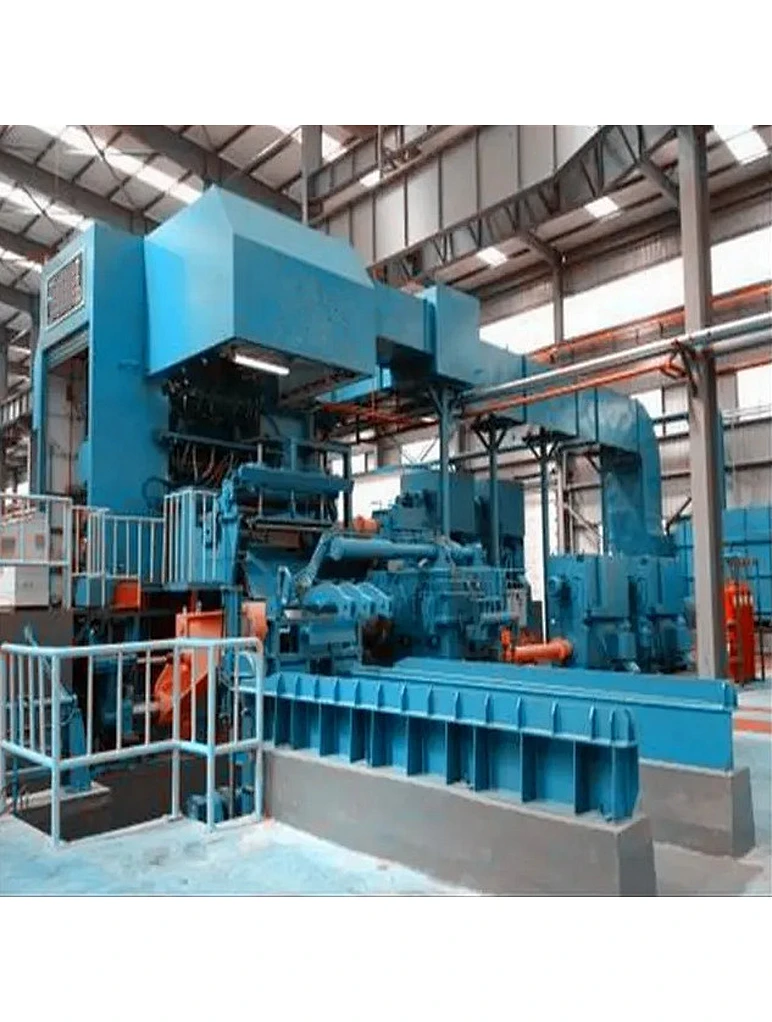

GLIMPSE reversible 12-high cold rolling mill unit
12-HIGH-MILL
The 12-high cold rolling mill is a tower-shaped roller rolling machine with a three-layer roller system. The 12-high cold rolling mill’s roll system consists of six support rollers, four middle rollers, and two work rollers, and the four middle rollers are transmitted.
Quantity
GLIMPSE reversible 12-high cold rolling mill unit
GLIMPSE reversible 12-high cold rolling mill unit is developed responding to the market's demand for high quality precision cold-rolled stainless steel strips. It has good strip shape control capability and is often used for rolling thin gauge stainless steel strips. The roller stability of the 12-high cold rolling mill is suitable for rolling of stainless steel, which overcomes the limits of the horizontal side of the working roller. The main rolling line adjustment mechanism in the stand, the middle roller machine work roller changing structure, the support roller frame, the convexity adjustment mechanism, the middle roller axial channeling mechanism, and the guide board.
12-high cold rolling mill’s roll composition:
The 12-high cold rolling mill is a tower-shaped roller rolling machine with a three-layer roller system. The 12-high cold rolling mill’s roll system consists of six support rollers, four middle rollers, and two work rollers, and the four middle rollers are transmitted.
Features of 12-high cold rolling mill:
1) Rolling bearing installation is staggered to improve the surface quality of the steel strips.
2) Adopt the overall cast steel parts to greatly improve the rigidity of the equipment.
3) Work rollers and rolled cars, economic and practical, greatly shorten the rolling time and improve economic benefits.
Classic model organization of the twelve roller cold rolling machine:
Technical performance of 900mm reversible twelve roller cold rolling machine:
Working roller: φ100/φ90 x 1000mm
Middle roller crossing volume: ± 40mm
Support roller: φ260/φ160mm
Maximum rolling system: 5000kn
Rolling speed: 300 meters/minute
Blank thickness: ≤2mm
Blank width: 600-820mm
Finished product thickness: 0.1-1.5mm
Electric power: 723kW
Keywords: cold rolling mill, 12-high cold rolling mill, 12-roll cold rolling mill, reversible cold rolling mill
