Glimpse reversing 14 High cold rolling mill
14Hi-CRM
The 14 High cold rolling mill is used to roll a thinner and better stainless steel band steel and is a new cold rolling machine to perform rolling tasks that cannot be completed by the six -rolling machine.
Quantity
Glimpse reversing 14 High cold rolling mill
The 14 High cold rolling mill is used to roll a thinner and better stainless steel band steel and is a new cold rolling machine to perform rolling tasks that cannot be completed by the six -rolling machine.
The main structure of the reversible fourteen roller cold rolling machine:
There is an upper and lower support roller in the overall rack made of cast steel. There are the first support rollers in the upper and lower rollers, floating support rollers, side support rollers and working rollers. There are two downward oil cylinders between the upper support roller and the beams on the rack to apply rolling pressure to the roller system. The rolling line elevation is adjusted by the pads installed in the lower support roller, and the cold rolling mill bear it by a strong rack. So the cold rolling mill can roll high-precision and high-quality steel, which is due to the high rigid rigidity of the fourteen roller reversible cold rolling machine and the horizontal adjustment function of the middle roller.
The main parameters of reversible fourteen roll cold rolling machines:

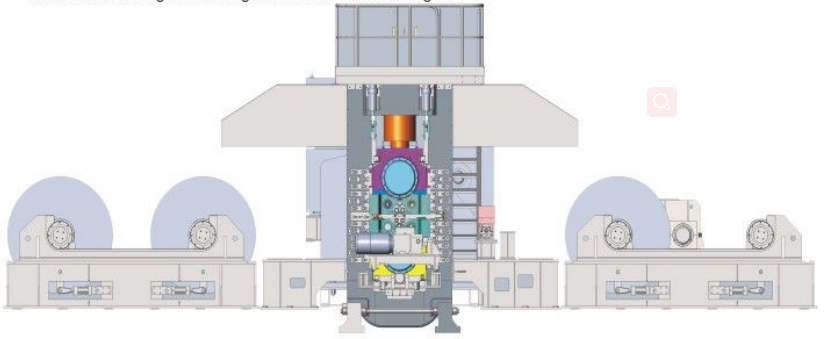

14 High cold rolling mill model
Keywords: cold rolling mill, cold rolling machine, 14 high cold rolling mill, 14-roller cold rollling mill
The 14 High cold rolling mill is used to roll a thinner and better stainless steel band steel and is a new cold rolling machine to perform rolling tasks that cannot be completed by the six -rolling machine.
The main structure of the reversible fourteen roller cold rolling machine:
There is an upper and lower support roller in the overall rack made of cast steel. There are the first support rollers in the upper and lower rollers, floating support rollers, side support rollers and working rollers. There are two downward oil cylinders between the upper support roller and the beams on the rack to apply rolling pressure to the roller system. The rolling line elevation is adjusted by the pads installed in the lower support roller, and the cold rolling mill bear it by a strong rack. So the cold rolling mill can roll high-precision and high-quality steel, which is due to the high rigid rigidity of the fourteen roller reversible cold rolling machine and the horizontal adjustment function of the middle roller.
The main parameters of reversible fourteen roll cold rolling machines:
- Rolling force: max 1,000 tons
- Rolling speed: 400 meter/minute
- Finished product thickness: minimum 0.1mm
- Finished product width: maximum 1250mm

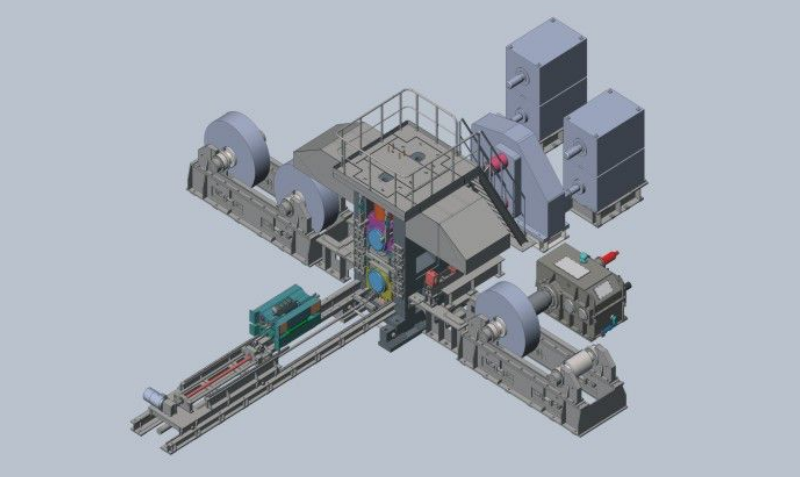

14 High cold rolling mill model
Keywords: cold rolling mill, cold rolling machine, 14 high cold rolling mill, 14-roller cold rollling mill
