high silicon alloy electrode plates for pickling lines electrode plates silicon alloy electrode
electrode-Si
Glimpse supplies include neutral hydrochloric acid washed electrode plates (lead alloy anode plate, carbon steel cathode plate), nitric acid acid washed electrode plate (high silicon anode plate, stainless steel cathode plate), etc.
Quantity
Electrode Plates
Glimpse supplies include neutral hydrochloric acid washed electrode plates (lead alloy anode plate, carbon steel cathode plate), nitric acid acid washed electrode plate (high silicon anode plate, stainless steel cathode plate), etc.
1. Main supply electrode types and characteristics:
The high-silicon corrosion-resistant alloy cast iron electrode plate has excellent corrosion resistance and adaptability, and can work not only in Na2SO4 electrolyte, but also in H2SO4, HNO3 or mixed acid. In addition, it also has the characteristics of green environmental protection. electrode plates, electrode plates
Features
The lost foam molding process is adopted, the surface is smooth, the dimensional accuracy is high, and the structure is dense.
The smelting process is advanced and the alloy composition is accurate.
Advanced heat treatment process, excellent control of metallographic structure.
electrode plates silicon alloy electrode silicon alloy electrode
Lead alloy electrode plate is suitable for neutral salt electrolytic pickling and H2SO4 electrolytic pickling process, but not suitable for nitric acid electrolytic pickling process.
Features
High adhesion, no peeling, no block, no bulging, safe and reliable.
Uniform composition, stable corrosion, no foaming, long service life.
Integral molding, precise structure size, high strength, easy to install.
The thickness of the alloy layer is uniform and the surface is smooth.
electrode plates, electrode plates
2. The material of the electrode plate, the medium used, etc.:
3. Physical properties of electrode plates:
Key words: high silicon alloy electrode, cathode plate
electrode plates high silicon alloy electrode plates, eletrode plates electrode plates,silicon alloy electrode high silicon alloy electrode plates, eletrode plates electrode plates,silicon alloy electrode
Glimpse supplies include neutral hydrochloric acid washed electrode plates (lead alloy anode plate, carbon steel cathode plate), nitric acid acid washed electrode plate (high silicon anode plate, stainless steel cathode plate), etc.
1. Main supply electrode types and characteristics:

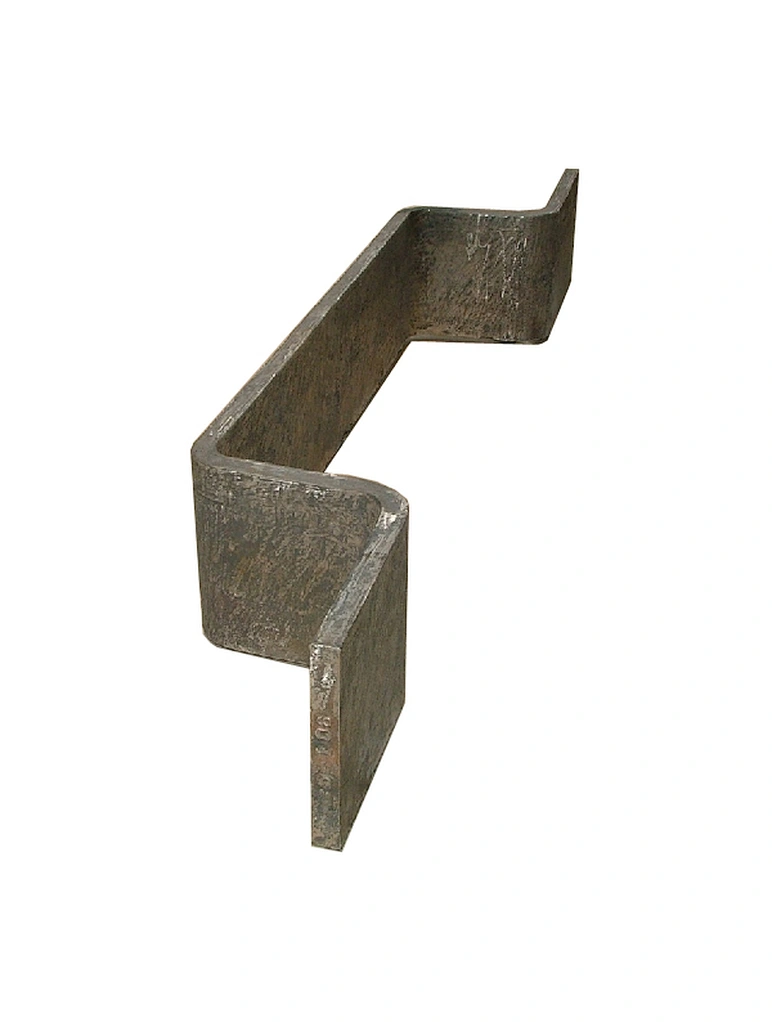

- High silicon alloy electrode
The high-silicon corrosion-resistant alloy cast iron electrode plate has excellent corrosion resistance and adaptability, and can work not only in Na2SO4 electrolyte, but also in H2SO4, HNO3 or mixed acid. In addition, it also has the characteristics of green environmental protection. electrode plates, electrode plates
Features
The lost foam molding process is adopted, the surface is smooth, the dimensional accuracy is high, and the structure is dense.
The smelting process is advanced and the alloy composition is accurate.
Advanced heat treatment process, excellent control of metallographic structure.
electrode plates silicon alloy electrode silicon alloy electrode
- Lead alloy electrode
Lead alloy electrode plate is suitable for neutral salt electrolytic pickling and H2SO4 electrolytic pickling process, but not suitable for nitric acid electrolytic pickling process.
Features
High adhesion, no peeling, no block, no bulging, safe and reliable.
Uniform composition, stable corrosion, no foaming, long service life.
Integral molding, precise structure size, high strength, easy to install.
The thickness of the alloy layer is uniform and the surface is smooth.
electrode plates, electrode plates
2. The material of the electrode plate, the medium used, etc.:
| Type | Material | Media | Character | Structure | Delivery |
| High silicon alloy | Fe-Si | Na2SO4、HNO3、H2SO4 | Integral combined | Single or in groups | |
| Fe-Si expand | Na2SO4、HNO3、H2SO4 | More suitable for HNO3 medium, large load conditions | |||
| Lead base | Pb | Na2SO4、H2SO4 | Low strength and hardness, general corrosion resistance | Integral combined | Single or in groups |
| Pb alloy | Na2SO4、H2SO4 | It has good corrosion resistance and can be adjusted according to the requirements of strength, hardness and corrosion resistance to meet the different needs of different users. | |||
| Cathode series | Carbon steel | Na2SO4 | Integral | Single or in groups | |
| Stainless steel | HNO3、H2SO4 | Integral combined |
3. Physical properties of electrode plates:
| Electrode Plate Type | Resistivity ρ（μΩ·m） | tensile strength σb(MPa） | Elongation δ（%） | Flexural strength σbb(MPa) | impact toughness αk (J/cm2) |
| Lead alloy electrode plate | ≤0.29 | ≥40 | ≥ 20 | / | / |
| High silicon alloy electrode plate | ≤0.60 | / | / | ≥120 | ≥0.8 |
Key words: high silicon alloy electrode, cathode plate
electrode plates high silicon alloy electrode plates, eletrode plates electrode plates,silicon alloy electrode high silicon alloy electrode plates, eletrode plates electrode plates,silicon alloy electrode
