Stainless steel 20-High cold rolling mill
SS-20-High
The 20-High cold rolling mill is suitable for cold rolling high-strength steel materials such as stainless steel, silicon steel and carbon steel, and is the best choice for precision stainless steel strip rolling.
The 20-High cold rolling mill has the advantages of high rolling thickness accuracy, good flatness, and excellent strip shape.
The 20-High cold rolling mill has the advantages of high rolling thickness accuracy, good flatness, and excellent strip shape.
Quantity
Stainless steel 20-High cold rolling mill
The 20-High cold rolling mill is suitable for cold rolling high-strength steel materials such as stainless steel, silicon steel and carbon steel, and is the best choice for precision stainless steel strip rolling.
The 20-High cold rolling mill has the advantages of high rolling thickness accuracy, good flatness, and excellent strip shape.
The 20-High cold rolling mill has a high level of automation, saving labor costs and high efficiency.
For rolling stainless steel materials, the reduction rate is above 90%, and the rolling speed is 700 m/min; the maximum reduction rate for rolling carbon steel materials is above 95%, and the rolling speed reaches 800 m/min. The rolling output thickness is as thin as 0.03 mm.
Main parameters
Maximum rolling speed: 800 meters/minute
Minimum rolling thickness: 0.03 mm
Maximum rolling width: 1675 mm

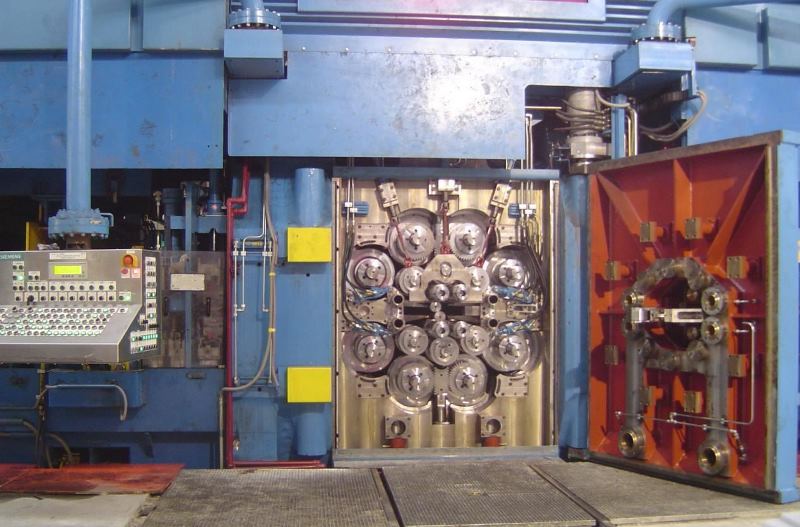

Roll system of 20-High cold rolling mill

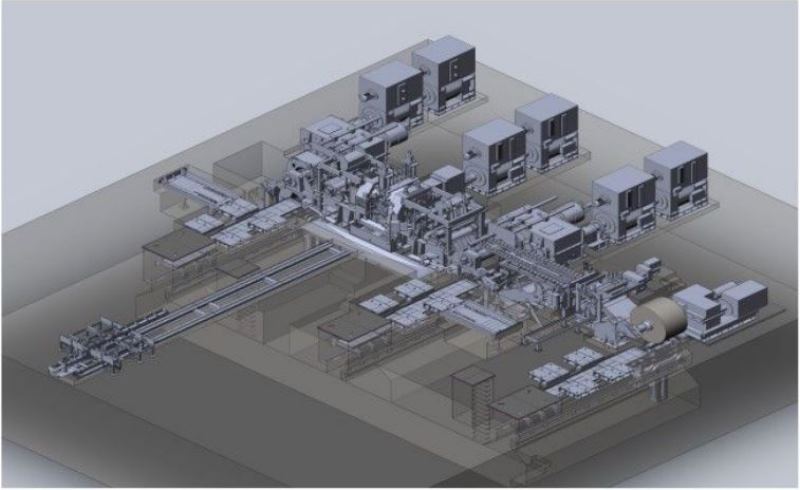

Layout of 20-High cold rolling mill

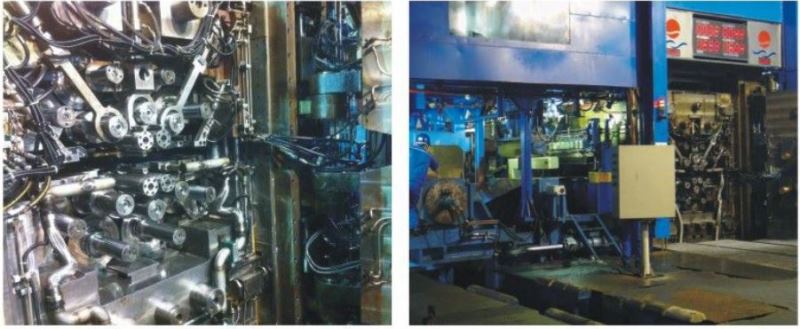

Typical models of 20-High cold rolling mill
1. 1450mm 20-High cold rolling mill (AC inverter motor) Main parameters:
Material grade: stainless steel
Strip thickness: 5.0-0.15mm
Strip width: 800-1,300 mm
Rolling speed: 800 m/min
Diameter of work roll:80 mm
Diameter of back up roll bearing: 406.4 mm
Rolling force:10000 kn
Main motor power:5000 kw
Coiling motor power:8000 kW (two 4000kW)
2. 1450mm 20-High cold rolling mill (DC motor) Main parameters:
Material grades: stainless steel
Strip thickness: 3.0-0.10mm
Strip width: 800-1,300 mm
Rolling speed: 600 m/min
Diameter of work roll: 63 mm
Diameter of back up roll bearing: 300 mm
Rolling force: 8000 kn
Main motor power: 3000 kW (two 1500kW)
Coiling motor power: 3000 kW (two 1500kW)
Keywords: 20-High cold rolling mill, stainless steel
Short video of GLIMPSE 20-High cold rolling mill commissionin
The 20-High cold rolling mill is suitable for cold rolling high-strength steel materials such as stainless steel, silicon steel and carbon steel, and is the best choice for precision stainless steel strip rolling.
The 20-High cold rolling mill has the advantages of high rolling thickness accuracy, good flatness, and excellent strip shape.
The 20-High cold rolling mill has a high level of automation, saving labor costs and high efficiency.
For rolling stainless steel materials, the reduction rate is above 90%, and the rolling speed is 700 m/min; the maximum reduction rate for rolling carbon steel materials is above 95%, and the rolling speed reaches 800 m/min. The rolling output thickness is as thin as 0.03 mm.
Main parameters
Maximum rolling speed: 800 meters/minute
Minimum rolling thickness: 0.03 mm
Maximum rolling width: 1675 mm
Roll system of 20-High cold rolling mill
Layout of 20-High cold rolling mill
| Model Selection table | |||||
| Rolling material | Stainless steel, silicon steel, high -carbon steel, You steel, copper, etc. | ||||
| Chinese model | Corresponding foreign models | Working roller mm | Back up Roller MM | Width/mm | Minimum thickness mm |
| 350-550 | ZR-33 | 28 | 160 | Min220/Max550 | 0.03 |
| 550-750 | ZR-23 | 40 | 225 | Min450/Max750 | 0.05 |
| 850-1050 | ZR-22 | 63.5 | 300 | Min480/Max1050 | 0.08 |
| 1300 | ZR-22 | 63.5 | 300 | Min660/Max1320 | 0.08 |
| 1600 | ZR-21 | 80 | 406.4 | Min840/Max1675 | 0.15 |
Typical models of 20-High cold rolling mill
1. 1450mm 20-High cold rolling mill (AC inverter motor) Main parameters:
Material grade: stainless steel
Strip thickness: 5.0-0.15mm
Strip width: 800-1,300 mm
Rolling speed: 800 m/min
Diameter of work roll:80 mm
Diameter of back up roll bearing: 406.4 mm
Rolling force:10000 kn
Main motor power:5000 kw
Coiling motor power:8000 kW (two 4000kW)
2. 1450mm 20-High cold rolling mill (DC motor) Main parameters:
Material grades: stainless steel
Strip thickness: 3.0-0.10mm
Strip width: 800-1,300 mm
Rolling speed: 600 m/min
Diameter of work roll: 63 mm
Diameter of back up roll bearing: 300 mm
Rolling force: 8000 kn
Main motor power: 3000 kW (two 1500kW)
Coiling motor power: 3000 kW (two 1500kW)
Keywords: 20-High cold rolling mill, stainless steel
