steel sleeve coil sleeve for cold rolling mills
coiler-sleeve
When the sleeve is used for the cold rolling coiler to coil thin steel strip (usually used when the thickness of the steel strip is less than 1mm), it plays a supporting role to prevent the steel strip from collapsing. coil sleeve for cold rolling mills,steel sleeve coil sleeve for cold rolling mills
Quantity
Winder sleeve Steel coiler sleeve (steel sleeve)
When the sleeve is used for the cold rolling coiler to coil thin steel strip (usually used when the thickness of the steel strip is less than 1mm), it plays a supporting role to prevent the steel strip from collapsing. The most important process in the process design of the thick-walled sleeve is the material and heat treatment process. By selecting suitable materials and making a reasonable heat treatment process, the mechanical properties of the sleeve are guaranteed. Our company can design a steel sleeve that meets the user's use according to the width and thickness of the user's steel strip and the unit tensile stress of the steel strip. coil sleeve for cold rolling mills
1 Product features of coiler sleeve
Design and optimization of forged steel sleeves, cast sleeves and hot-expanded sleeves can be adopted according to user requirements;
It can produce sleeves of different specifications and thicknesses, the thinnest can reach 8mm, and the maximum diameter can reach 1060mm;
Advanced equipment and advanced manufacturing technology improve the mechanical properties of the sleeve and greatly improve the service life of the sleeve;
The mature production line can meet the needs of users, and the shortest production cycle can reach two months.
φ561×φ505×760
φ768×φ505×760
φ850×φ607×1315/
φ1060×φ758×1676/
φ1060 ×φ758×2150
φ808×φ608×1400
φ626×φ606 ×1900
φ808×φ608×1450
φ800×φ608×1650
φ700×φ507×1010
coiler sleeve coiler sleeve coiler sleeve coiler sleeve

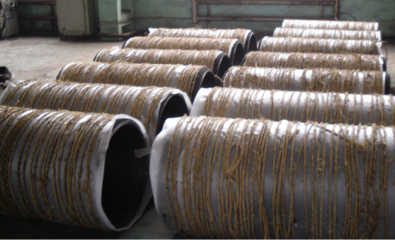

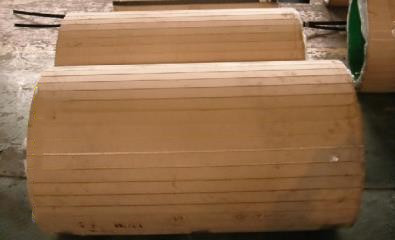

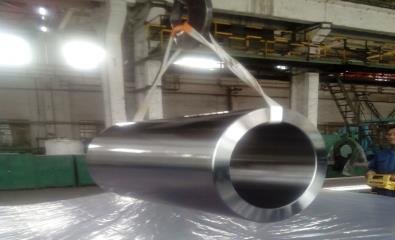

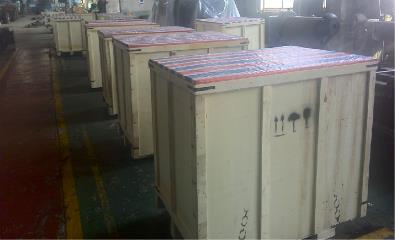

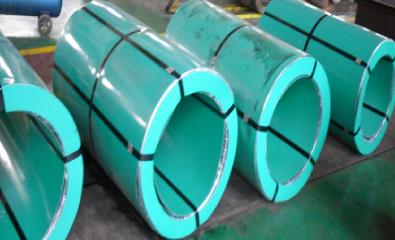

3 Product images
4 Services of coiler sleeve
After the product is put into normal use, during the warranty period, if the product has a production quality problem, our company will repair it for free; if the problem is not a product manufacturing quality problem or exceeds the warranty period, if the user sends a letter or calls for assistance, our company will Actively assist, if necessary, send service personnel to the scene to assist users in processing for free. coiler sleeve coiler sleeve
5 Forged cold rolled production line-sales references of coiler sleeve
Keywords: Coiler sleeve, stainless steel coil sleeve, mandrel sleeve, winder sleeve
coiler sleeve, mandrel sleeve, steel coil sleeve,rolling mill sleeve
winder sleeve, stainless steel sleeve, winder coil sleeve, mill sleeve
When the sleeve is used for the cold rolling coiler to coil thin steel strip (usually used when the thickness of the steel strip is less than 1mm), it plays a supporting role to prevent the steel strip from collapsing. The most important process in the process design of the thick-walled sleeve is the material and heat treatment process. By selecting suitable materials and making a reasonable heat treatment process, the mechanical properties of the sleeve are guaranteed. Our company can design a steel sleeve that meets the user's use according to the width and thickness of the user's steel strip and the unit tensile stress of the steel strip. coil sleeve for cold rolling mills
1 Product features of coiler sleeve
Design and optimization of forged steel sleeves, cast sleeves and hot-expanded sleeves can be adopted according to user requirements;
It can produce sleeves of different specifications and thicknesses, the thinnest can reach 8mm, and the maximum diameter can reach 1060mm;
Advanced equipment and advanced manufacturing technology improve the mechanical properties of the sleeve and greatly improve the service life of the sleeve;
The mature production line can meet the needs of users, and the shortest production cycle can reach two months.
2 Main specifications of coiler sleeve
φ561×φ505×760
φ768×φ505×760
φ850×φ607×1315/
φ1060×φ758×1676/
φ1060 ×φ758×2150
φ808×φ608×1400
φ626×φ606 ×1900
φ808×φ608×1450
φ800×φ608×1650
φ700×φ507×1010
coiler sleeve coiler sleeve coiler sleeve coiler sleeve
3 Product images
4 Services of coiler sleeve
After the product is put into normal use, during the warranty period, if the product has a production quality problem, our company will repair it for free; if the problem is not a product manufacturing quality problem or exceeds the warranty period, if the user sends a letter or calls for assistance, our company will Actively assist, if necessary, send service personnel to the scene to assist users in processing for free. coiler sleeve coiler sleeve
5 Forged cold rolled production line-sales references of coiler sleeve
| No. | Model | Place(Nubmer) | Width max/mm | Material rolled |
| 1 | SENDZIMIR 20 high | Taigang (10), Tianguan Yuantong (2), Jiugang (4), Angang (2), Southwest Stainless (3) and Indonesia (1) | 1250 | Stainless steel Silicon steel |
| TISCO (2) Jiangsu Chengfei (2) | 650 | SS | ||
| 2 | SUNDWIG 20 high | TISCO (2) | 11625 | SS |
| 3 | Jiugang (2) | 11350 | SS | |
| 4 | Shanghai Stal (2) | 3380 | SS | |
| 5 | SUNDWIG S6 high | TISCO (2) | 2100 | SS |
| 6 | 6high 5 stand tandem mill | TISCO (2) | 1650 | Stainless steel Silicon steel |
| 7 | 18 high 5 stand tandem mill | TISCO (1) | 1650 | SS |
